CEB100W CEB100W

CEB100W

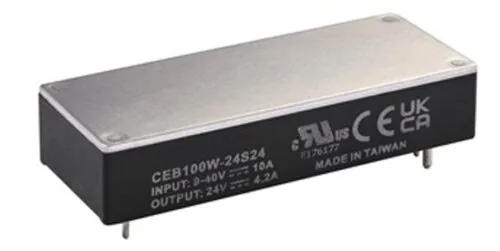

CEB100W Series, 100 Watt DC-DC Converter

3000 VDC Isolation

Eighth Brick Size

Request a quote Download Datasheet

Features

  • Efficiency Up to 93.5%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Remote On/Off
  • Fully Protected (OTP/OCP/OVP/UVLO)
  • 3000Vdc I/O Isolation
  • Operating Case Temperature -40 to +105°C
  • Eighth Brick Size Meet Industrial Standard
  • CB Test Certificate IEC 62368-1
  • UL 62368-1 (Basic Insulation) Approval
  • Shock & VibrationMIL-STD-810F/EN 61373 Compliant
  • Fire & Smoke EN 45545-2 Compliant
  • 5000m Operating Altitude

Models and Ratings

Model Input VDC Output VDC Output Current Size
CEB100W-24S05 9~40 Volts 5 Volts 20 Amps 62.2 x 26.6 x 12.7mm
CEB100W-24S12 9~40 Volts 12 Volts 8.3 Amps 62.2 x 26.6 x 12.7mm
CEB100W-24S24 9~40 Volts 24 Volts 4.17 Amps 62.2 x 26.6 x 12.7mm
CEB100W-24S48 9~40 Volts 48 Volts 2.1 Amps 62.2 x 26.6 x 12.7mm
CEB100W-24S54 9~40 Volts 54 Volts 1.85 Amps 62.2 x 26.6 x 12.7mm
CEB100W-48S05 16.5~74 Volts 5 Volts 20 Amps 62.2 x 26.6 x 12.7mm
CEB100W-48S12 16.5~74 Volts 12 Volts 8.3 Amps 62.2 x 26.6 x 12.7mm
CEB100W-48S24 16.5~74 Volts 24 Volts 4.17 Amps 62.2 x 26.6 x 12.7mm
CEB100W-48S48 16.5~74 Volts 48 Volts 2.1 Amps 62.2 x 26.6 x 12.7mm
CEB100W-48S54 16.5~74 Volts 54 Volts 1.85 Amps 62.2 x 26.6 x 12.7mm
