cfm202s-power-supply cfm202s-power-supply

CFM202S Series

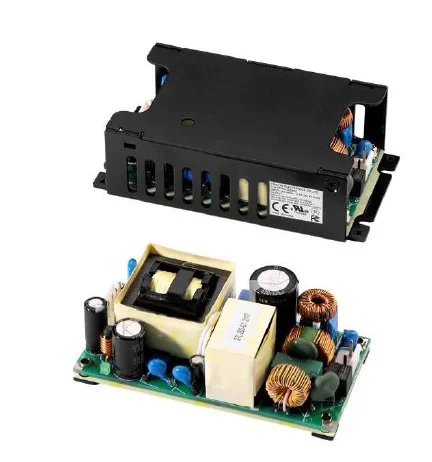

CFM202S Series, 200 Watt Chassis Mounting Single Output Power Supplies

CFM202SXXXB = Open Frame with Baseplate

CFM202SXXXC = Enclosed Metal Case

Request a quote Download Datasheet

Features

  • High Efficiency up to 94%
  • 2”x 4” Open Frame Compact Size
  • 150W with Natural Convection (CFM202SXXXB) - Open Frame with Baseplate
  • 180W with Natural Convection (CFM202SXXXC) - Enclosed Metal Case
  • 200W with Fan-Cooling
  • No Load Input Power Consumption<150mW
  • Approved Safety IEC/EN/UL 62368-1
  • Meets IEC/EN60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Active PFC Function

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM202S120 90~264 12 Volts 16.66 Amps 101.6 x 50.8 x 33mm
CFM202S240 90~264 24 Volts 8.33 Amps 101.6 x 50.8 x 33mm
CFM202S280 90~264 28 Volts 7.14 Amps 101.6 x 50.8 x 33mm
CFM202S360 90~264 36 Volts 5.56 Amps 101.6 x 50.8 x 33mm
CFM202S480 90~264 48 Volts 4.17 Amps 101.6 x 50.8 x 33mm
CFM202S560 90~264 56 Volts 3.58 Amps 101.6 x 50.8 x 33mm
