CFM25S-T Series

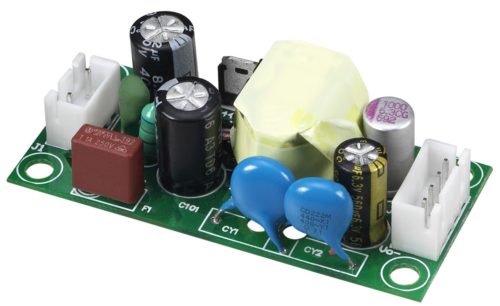

CFM25S-T Series, 25 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • 2”x 1.1” Open Frame Compact Size
  • No Load Input Power < 0.1W
  • Approval IEC/EN/UL 62368-1
  • Approval IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Peak Load Capability (2 Times of Rated Current)

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM25S050-T 85~264 5 Volts 4 Amps 50.8 x 27.94 x 24.9mm
CFM25S120-T 85~264 12 Volts 2.1 Amps 50.8 x 27.94 x 24.9mm
CFM25S150-T 85~264 15 Volts 1.67 Amps 50.8 x 27.94 x 24.9mm
CFM25S240-T 85~264 24 Volts 1.05 Amps 50.8 x 27.94 x 24.9mm
CFM25S360-T 85~264 36 Volts 0.7 Amps 50.8 x 27.94 x 24.9mm
CFM25S480-T 85~264 48 Volts 0.52 Amps 50.8 x 27.94 x 24.9mm
