CFM40D/T Series

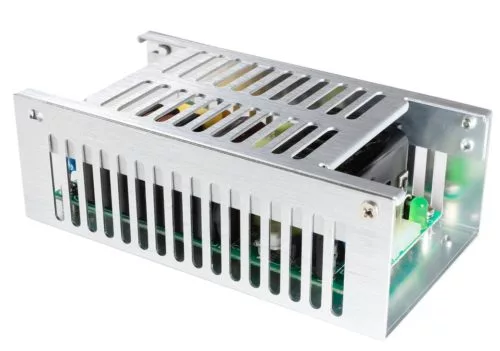

CFM40D/T Series, Open Frame &  Enclosed Dual and Triple output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • 2” x 4” Size
  • Industry-Standard Pin Out
  • Efficiency to 81%
  • Short Circuit Protection
  • Meets EN61204-3 Class B and CISPR/FCC Class B
  • Approved IEC/EN/UL62368-1

Models and Ratings

Model Input VAC Output 1 Output 2 Output 3 Size
CFM40D-01-CA 90~264 5 Volts / 5 Amps 12 Volts / 2.5 Amps 117 x 63 x 40mm
CFM40D-02-CA 90~264 5 Volts / 5 Amps 24 Volts / 1.5 Amps 117 x 63 x 40mm
CFM40T-01-CA 90~264 5 Volts / 5 Amps 12 Volts / 2.5 Amps -5 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-02-CA 90~264 5 Volts / 5 Amps 12 Volts / 2.5 Amps -12 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-03-CA 90~264 5 Volts / 5 Amps 15 Volts / 2.3 Amps -15 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-04-CA 90~264 5 Volts / 5 Amps 24 Volts / 1.5 Amps -5 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-05-CA 90~264 5 Volts / 5 Amps 24 Volts / 1.5 Amps -5 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-06-CA 90~264 5 Volts / 5 Amps 24 Volts / 1.5 Amps 12 Volts / 0.5 Amps 117 x 63 x 40mm
CFM40T-07-CA 90~264 3.3 Volts / 7 Amps 5 Volts / 3.5 Amps -12 Volts / 0.5 Amps 117 x 63 x 40mm
