CFM40M-P Series

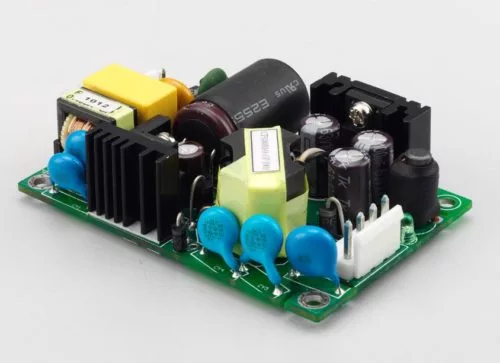

CFM40M Series, 40 Watt PCB Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • Medical and ITE Approved
  • Efficiency to 88% Typical
  • Continuous Short Circuit Protection
  • Meets EN55011 and EN55032 Class B
  • No load Power Consumption<0.3W
  • 2”x 3” Size
  • Meets 2 MOPP

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM40M033-P 85~264 3.3 Volts 6 Amps 76.2 x 50.8 x 23mm
CFM40M050-P 85~264 5 Volts 6 Amps 76.2 x 50.8 x 23mm
CFM40M090-P 85~264 9 Volts 4.45 Amps 76.2 x 50.8 x 23mm
CFM40M120-P 85~264 12 Volts 3.34 Amps 76.2 x 50.8 x 23mm
CFM40M150-P 85~264 15 Volts 2.67 Amps 76.2 x 50.8 x 23mm
CFM40M240-P 85~264 24 Volts 1.67 Amps 76.2 x 50.8 x 23mm
CFM40M300-P 85~264 30 Volts 1.33 Amps 76.2 x 50.8 x 23mm
CFM40M360-P 85~264 36 Volts 1.11 Amps 76.2 x 50.8 x 23mm
CFM40M480-P 85~264 48 Volts 0.834 Amps 76.2 x 50.8 x 23mm
