CFM41S Series

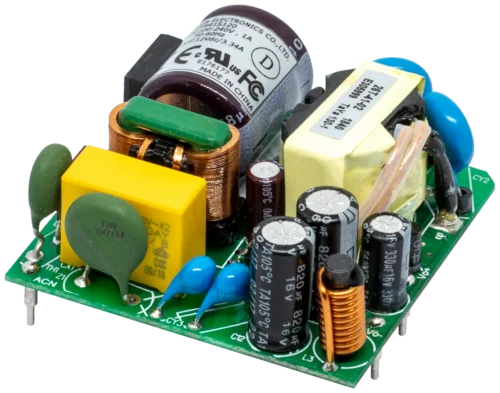

CFM41S Series, 40 Watt PCB Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input 90~264VAC
  • EN55032 Class B and CISPR/FCC Class B
  • Meets IEC/EN60335-1
  • Approval IEC/EN/UL 62368-1
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • No Load Power Consumption < 0.15W
  • Peak Load Capability (2 Times of Rated Current)

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM41S050 90~264 5 Volts 6 Amps 50.8 x 50.8 x 25.6mm
CFM41S120 90~264 12 Volts 2.1 Amps 50.8 x 50.8 x 25.6mm
CFM41S150 90~264 15 Volts 2.64 Amps 50.8 x 50.8 x 25.6mm
CFM41S240 90~264 24 Volts 1.67 Amps 50.8 x 50.8 x 25.6mm
CFM41S360 90~264 36 Volts 1.11 Amps 50.8 x 50.8 x 25.6mm
CFM41S480 90~264 48 Volts 0.83 Amps 50.8 x 50.8 x 25.6mm

Related Products

CFM25S-power-supply CFM25S-power-supply

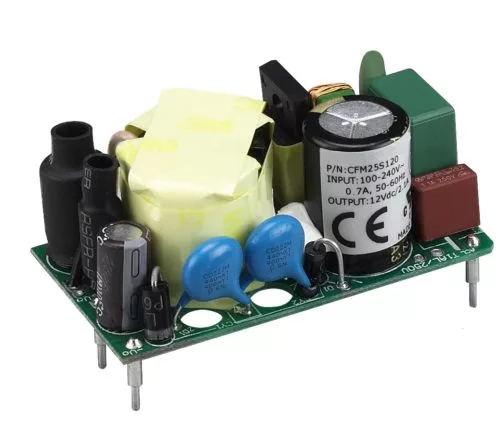

CFM25S Series
