CFM61S-T-power-supply CFM61S-T-power-supply

CFM61S-T Series

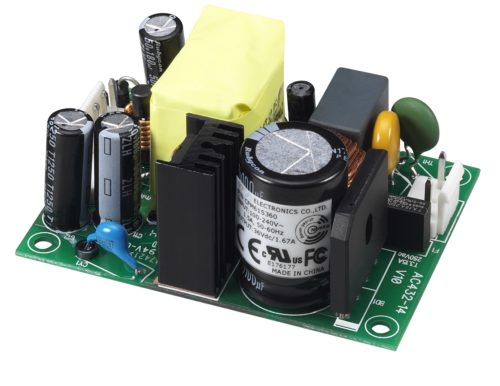

CFM61S-T Series, 60 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input 90~264VAC
  • High Efficiency up to 90%
  • Meets EN55032 Class B and CISRP/FCC Class B
  • Approved IEC62368-1, UL62368-1, EN62368-1
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Peak Load (2 times of rated current)
  • No Load Power Consumption < 0.15W

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM61S050-T 90~264 5 Volts 8 Amps 50.8 x 50.8 x 34.2mm
CFM61S120-T 90~264 12 Volts 5 Amps 50.8 x 50.8 x 34.2mm
CFM61S150-T 90~264 15 Volts 4 Amps 50.8 x 50.8 x 34.2mm
CFM61S240-T 90~264 24 Volts 2.5 Amps 50.8 x 50.8 x 34.2mm
CFM61S360-T 90~264 36 Volts 1.67 Amps 50.8 x 50.8 x 34.2mm
CFM61S480-T 90~264 48 Volts 1.25 Amps 50.8 x 50.8 x 34.2mm
