CFM81S-P Series

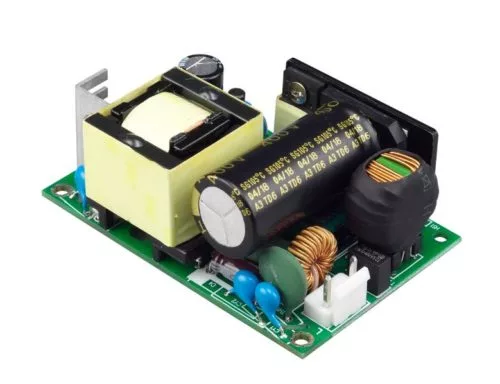

CFM81S Series, 80 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • High Efficiency up to 91%
  • 2”x 3” Open Frame Compact Size
  • No Load Power <0.3W
  • Approval IEC/EN/UL 62368-1
  • Approval IEC/EN 60335-1
  • Approval EN55032 Class B and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Peak Load (2 Times Rated Current)

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM81S120-P 90~264 12 Volts 6.7 Amps 76.2 x 50.8 x 35.9mm
CFM81S150-P 90~264 15 Volts 5.36 Amps 76.2 x 50.8 x 35.9mm
CFM81S240-P 90~264 24 Volts 3.35 Amps 76.2 x 50.8 x 35.9mm
CFM81S480-P 90~264 48 Volts 1.67 Amps 76.2 x 50.8 x 35.9mm
