chb50w-dcdc-converter chb50w-dcdc-converter

CHB50

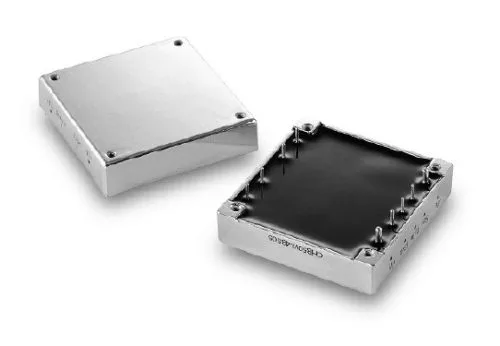

CHB50 Series, 50 Watt DC-DC Converter

2:1 Input Range

1500 VDC Isolation

Half Brick

Request a quote Download Datasheet

Features

  • 50W Isolated Output
  • Half-Brick Size Meet Industrial Standard
  • High Efficiency up to 89%
  • 300/400KHz Switching Frequency
  • 2:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Five-Sided Metal Case

Models and Ratings

Model Input VDC Output VDC Output Current Size
CHB50-12S33 9~18 Volts 3.3 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-12S05 9~18 Volts 5 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-12S12 9~18 Volts 12 Volts 4.16 Amps 61 x 57.9 x 12.7mm
CHB50-12S15 9~18 Volts 15 Volts 3.33 Amps 61 x 57.9 x 12.7mm
CHB50-12S24 9~18 Volts 24 Volts 2.08 Amps 61 x 57.9 x 12.7mm
CHB50-24S33 18~36 Volts 3.3 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-24S05 18~36 Volts 5 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-24S12 18~36 Volts 12 Volts 4.16 Amps 61 x 57.9 x 12.7mm
CHB50-24S15 18~36 Volts 15 Volts 3.33 Amps 61 x 57.9 x 12.7mm
CHB50-24S24 18~36 Volts 24 Volts 2.08 Amps 61 x 57.9 x 12.7mm
CHB50-48S33 36~75 Volts 3.3 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-48S05 36~75 Volts 5 Volts 10 Amps 61 x 57.9 x 12.7mm
CHB50-48S12 36~75 Volts 12 Volts 4.16 Amps 61 x 57.9 x 12.7mm
CHB50-48S15 36~75 Volts 15 Volts 3.33 Amps 61 x 57.9 x 12.7mm
CHB50-48S24 36~75 Volts 24 Volts 2.08 Amps 61 x 57.9 x 12.7mm
