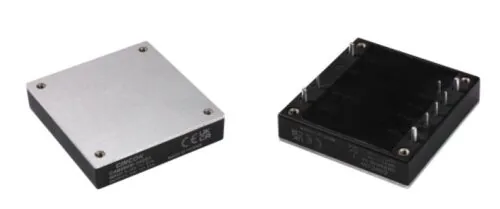

CHB500W CHB500W

CHB500W

CHB500W Series, 500 Watt, PCB Mounting DC-DC Converter

9-40 VDC Input Range

3000 VDC Isolation



Request a quote Download Datasheet

Features

  • Efficiency Up to 91%
  • Low No Load Power Consumption
  • Fixed Switching Frequency
  • Regulated Outputs
  • Input Under Voltage Protection
  • Fully Protected (OTP/OCP/OVP/UVLO)
  • 3000Vac I/O Isolation
  • Operating Case Temperature -40 to +105℃
  • Safety Meets UL/IEC/EN 62368-1 2nd (Basic Insulation)
  • Shock & Vibration MIL-STD-810F Compliant
  • Fire & Smoke EN 45545-2 Compliant
  • 5000m Operating Altitude
  • Option Model with Single Wire Parallel Control (Suffix “-PC”)

Models and Ratings

Model (Open Frame) Input VDC Output VDC Output Current Size (Open Frame)
CHB500W-24S12 9-40 Volts 12 Volts 42 Amps 57.9 x 61×12.7mm
CHB500W-24S24 9.5-40 Volts 24 Volts 21 Amps 57.9 x 61×12.7mm
CHB500W-24S28 9-40 Volts 28 Volts 18 Amps 57.9 x 61×12.7mm
CHB500W-24S148 9-40 Volts 48 Volts 10.4 Amps 57.9 x 61×12.7mm
CHB500W-24S54 9-40 Volts 54 Volts 9.26 Amps 57.9 x 61×12.7mm
