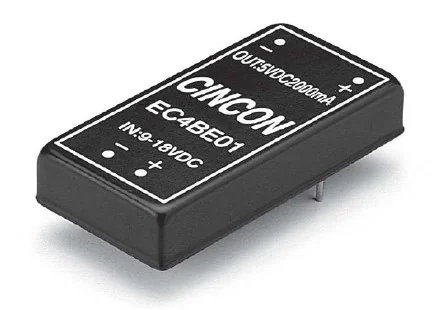

ec4be ec4be

EC4BE-10 Watt

EC4BE-10W Series, 10 Watt Encapsulated DC-DC Converter

2″ x 1″  Package

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 2"x 1" Input Range
  • 10 Watt Isolated Output
  • Continuous Short Circuit Protection
  • Efficiency up to 82 %
  • EMI Complies with EN55032 Class A
  • Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model Input VDC Output VDC Output Current Size
EC4BE01 9~18 Volts 5 Volts 2000mA 50.8 x 25.4 x 10.2mm
EC4BE02 9~18 Volts 12 Volts 830mA 50.8 x 25.4 x 10.2mm
EC4BE03 9~18 Volts 15 Volts 666mA 50.8 x 25.4 x 10.2mm
EC4BE11 18~36 Volts 5 Volts 2000mA 50.8 x 25.4 x 10.2mm
EC4BE12 18~36 Volts 12 Volts 830mA 50.8 x 25.4 x 10.2mm
EC4BE13 18~36 Volts 15 Volts 666mA 50.8 x 25.4 x 10.2mm
EC4BE21 36~72 Volts 5 Volts 2000mA 50.8 x 25.4 x 10.2mm
EC4BE22 36~72 Volts 12 Volts 830mA 50.8 x 25.4 x 10.2mm
EC4BE23 36~72 Volts 15 Volts 666mA 50.8 x 25.4 x 10.2mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size
EC4BE06 9~18 Volts +5 Volts / +1000mA -5 Volts / -1000mA 50.8 x 25.4 x 10.2mm
EC4BE04 9~18 Volts +12 Volts / +416mA -12 Volts / -415mA 50.8 x 25.4 x 10.2mm
EC4BE05 9~18 Volts +15 Volts / +333mA -15 Volts / -333mA 50.8 x 25.4 x 10.2mm
EC4BE16 18~36 Volts +5 Volts / +1000mA -5 Volts / -1000mA 50.8 x 25.4 x 10.2mm
EC4BE14 18~36 Volts +12 Volts / +416mA -12 Volts / -415mA 50.8 x 25.4 x 10.2mm
EC4BE15 18~36 Volts +15 Volts / +333mA -15 Volts / -333mA 50.8 x 25.4 x 10.2mm
EC4BE26 36~72 Volts +5 Volts / +1000mA -5 Volts / -1000mA 50.8 x 25.4 x 10.2mm
EC4BE24 36~72 Volts +12 Volts / +416mA -12 Volts / -415mA 50.8 x 25.4 x 10.2mm
EC4BE25 36~72 Volts +15 Volts / +333mA -15 Volts / -333mA 50.8 x 25.4 x 10.2mm
