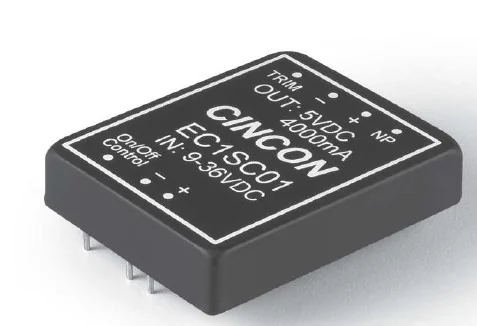

EC1SC Series, 20 Watt DC-DC Converter

2″x 1.6″ Package

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

20W Isolated Output
2”×1.6” Six Shided Shielded Metal Case
Efficiency to 84%
4:1 Input Range
Pi Input Filter
Continuous Short Circuit Protection
Meets EN55032 Class A Conducted
Remote On/Off Control
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size
EC1SC07	9~36 Volts	3.3 Volts	4000mA	50.8 x 40.6 x 11.4mm
EC1SC01	9~36 Volts	5 Volts	4000mA	50.8 x 40.6 x 11.4mm
EC1SC02	9~36 Volts	12 Volts	1670mA	50.8 x 40.6 x 11.4mm
EC1SC03	9~36 Volts	15 Volts	1330mA	50.8 x 40.6 x 11.4mm

EC1SC17	18~72 Volts	3.3 Volts	4000mA	50.8 x 40.6 x 11.4mm
EC1SC11	18~72 Volts	5 Volts	4000mA	50.8 x 40.6 x 11.4mm
EC1SC12	18~72 Volts	12 Volts	1670mA	50.8 x 40.6 x 11.4mm
EC1SC13	18~72 Volts	15 Volts	1330mA	50.8 x 40.6 x 11.4mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (1"x 1")
EC1SC06	9~36 Volts	+5 Volts / +2000mA	-5 Volts / -2000mA	50.8 x 40.6 x 11.4mm
EC1SC04	9~36 Volts	+12 Volts / +833mA	-12 Volts / -833mA	50.8 x 40.6 x 11.4mm
EC1SC05	9~36 Volts	+15 Volts / +666mA	-15 Volts / -666mA	50.8 x 40.6 x 11.4mm

EC1SC16	18~72 Volts	+5 Volts / +2000mA	-5 Volts / -2000mA	50.8 x 40.6 x 11.4mm
EC1SC14	18~72 Volts	+12 Volts / +833mA	-12 Volts / -833mA	50.8 x 40.6 x 11.4mm
EC1SC15	18~72 Volts	+15 Volts / +666mA	-15 Volts / -666mA	50.8 x 40.6 x 11.4mm
