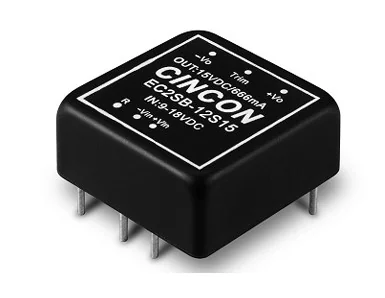

EC2SB Series, 10 Watt Through Hole DC-DC Converter
1″x 1″ Package
2:1 Inputs
Regulated Single and Dual Output
Features
- 10W Isolated Output
- 1”×1”×0.4” Shielded Metal Case
- Efficiency to 87%
- 2:1 Input Range
- Regulated Outputs
- Input Under Voltage Protection
- Remote On/Off
- Continuous Short Circuit Protection
- Without Tantalum Capacitors Inside
- EMI Meets EN55032 Class A
- Safety Meets IEC/EN/UL 62368-1
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size (1"x 1") |
|---|---|---|---|---|
| EC2SB-05S33 | 4.7~9 Volts | 3.3 Volts | 2500mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-05S05 | 4.7~9 Volts | 5 Volts | 2000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-05S12 | 4.7~9 Volts | 12 Volts | 833mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-05S15 | 4.7~9 Volts | 15 Volts | 666mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12S33 | 9~18 Volts | 3.3 Volts | 2500mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12S05 | 9~18 Volts | 5 Volts | 2000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12S12 | 9~18 Volts | 12 Volts | 833mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12S15 | 9~18 Volts | 15 Volts | 666mA | 25.4 x 25.4 x 10.2mm |
| EC2SBW-4S33 | 18~36 Volts | 3.3 Volts | 2500mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24S05 | 18~36 Volts | 5 Volts | 2000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24S12 | 18~36 Volts | 12 Volts | 833mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24S15 | 18~36 Volts | 15 Volts | 666mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48S33 | 36~75 Volts | 3.3 Volts | 2500mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48S05 | 36~75 Volts | 5 Volts | 2000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48S12 | 36~75 Volts | 12 Volts | 833mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48S15 | 36~75 Volts | 15 Volts | 666mA | 25.4 x 25.4 x 10.2mm |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size (1"x 1") |
|---|---|---|---|---|
| EC2SB-05D05 | 4.7~9 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-05D012 | 4.7~9 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-05D15 | 4.7~9 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12D05 | 9~18 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12D12 | 9~18 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-12D15 | 9~18 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24D05 | 18~36 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24D12 | 18~36 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-24D15 | 18~36 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48D05 | 36~75 Volts | +5 Volts / +1000mA | -5 Volts / -1000mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48D12 | 36~75 Volts | +12 Volts / +416mA | -12 Volts / -416mA | 25.4 x 25.4 x 10.2mm |
| EC2SB-48D15 | 36~75 Volts | +15 Volts / +333mA | -15 Volts / -333mA | 25.4 x 25.4 x 10.2mm |
