EC2SBW-H dc-dc converter

EC2SBW-H

Home | Products | Railway Solutions | EC2SBW-H

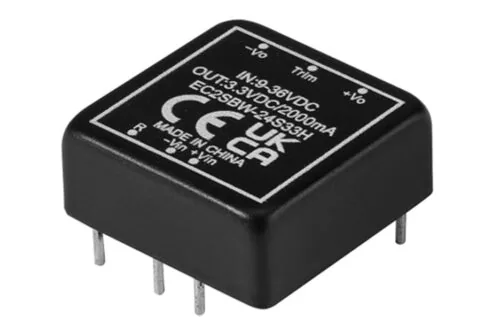

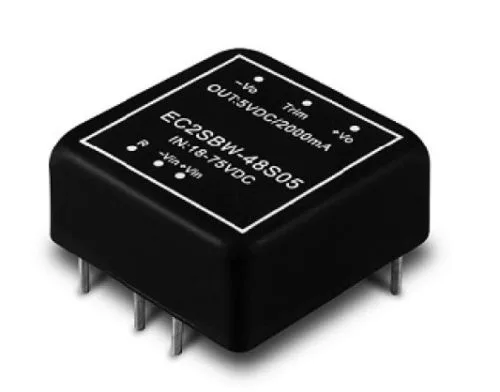

EC2SBW-H Series, 10 Watt Through Hole DC-DC Converter

1″x 1″ Package

3000 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

10W Isolated Output
Meets Industrial Standard 1.0”x1.0”x0.40”
Efficiency to 89.5%
4:1 Input Range
Regulated Outputs
Low No Load Power Consumption
Remote On/Off
Fully Protected (OCP/OVP/UVLO)
Without Tantalum Capacitors Inside
EMI Meets EN 55032 Class A Without External Component
Safety Meets IEC/EN/UL 62368-1
55℃ Operating Available (Suffix “-M2”)
Operating Ambient Temperature -40 to +105℃

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (1"x 1")
EC2SBW-24S33H	9~36 Volts	3.3 Volts	2000mA	25.4 x 25.4 x 10.2mm
EC2SBW-24S05H	9~36 Volts	5 Volts	2000mA	25.4 x 25.4 x 10.2mm
EC2SBW-24S12H	9~36 Volts	12 Volts	833mA	25.4 x 25.4 x 10.2mm
EC2SBW-24S15H	9~36 Volts	15 Volts	666mA	25.4 x 25.4 x 10.2mm

EC2SBW-48S33H	18~74 Volts	3.3 Volts	2000mA	25.4 x 25.4 x 10.2mm
EC2SBW-48S05H	18~74 Volts	5 Volts	2000mA	25.4 x 25.4 x 10.2mm
EC2SBW-48S12H	18~74 Volts	12 Volts	833mA	25.4 x 25.4 x 10.2mm
EC2SBW-48S15H	18~74 Volts	15 Volts	666mA	25.4 x 25.4 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (1"x 1")
EC2SAW-24D12H	9~36 Volts	+12 Volts / +417mA	-12 Volts / -417mA	25.4 x 25.4 x 10.2mm
EC2SAW-24D15H	9~36 Volts	+15 Volts / +333mA	-15 Volts / -333mA	25.4 x 25.4 x 10.2mm

EC2SBW-48D12H	18~74 Volts	+12 Volts / +417mA	-12 Volts / -4176mA	25.4 x 25.4 x 10.2mm
EC2SBW-48D15H	18~74 Volts	+15 Volts / +333mA	-15 Volts / -333mA	25.4 x 25.4 x 10.2mm
