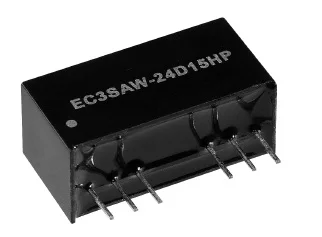

EC3SAW Series, 3 Watt Through Hole DC-DC Converter

8 Pin SIL Package

1500 VDC High Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

3W Isolated Output
Compact SIP-8 Package
Wide 4:1 Input Range
Positive Remote On/Off Control
Continuous Short Circuit Protection
Efficiency up to 85 %
Input Under Voltage Protection
Safety Meets IEC/EN/UL 62368-1
No Tantalum Capacitor Inside

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (8 Pin SIL)
EC3SAW-24S33P	9~36 Volts	3.3 Volts	700mA	21.8 x 11.1 x 9.2mm
EC3SAW-24S05P	9~36 Volts	5 Volts	600mA	21.8 x 11.1 x 9.2mm
EC3SAW-24S12P	9~36 Volts	12 Volts	250mA	21.8 x 11.1 x 9.2mm
EC3SAW-24S15P	9~36 Volts	15 Volts	200mA	21.8 x 11.1 x 9.2mm

EC3SAW-48S33P	18~75 Volts	3.3 Volts	700mA	21.8 x 11.1 x 9.2mm
EC3SAW-48S05P	18~75 Volts	5 Volts	600mA	21.8 x 11.1 x 9.2mm
EC3SAW-48S12P	18~75 Volts	12 Volts	250mA	21.8 x 11.1 x 9.2mm
EC3SAW-48S15P	18~75 Volts	15 Volts	200mA	21.8 x 11.1 x 9.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (8 Pin SIL)
EC3SAW-24D05P	9~36 Volts	+5 Volts / +300mA	-5 Volts / -300mA	21.8 x 11.1 x 9.2mm
EC3SAW-24D12P	9~36 Volts	+12 Volts / +125mA	-12 Volts / -125mA	21.8 x 11.1 x 9.2mm
EC3SAW-24D15P	9~36 Volts	+15 Volts / +100mA	-15 Volts / -100mA	21.8 x 11.1 x 9.2mm

EC3SAW-48D05P	18~75 Volts	+5 Volts / +300mA	-5 Volts / -300mA	21.8 x 11.1 x 9.2mm
EC3SAW-48D12P	18~75 Volts	+12 Volts / +125mA	-12 Volts / -125mA	21.8 x 11.1 x 9.2mm
EC3SAW-48D15P	18~75 Volts	+15 Volts / +100mA	-15 Volts / -100mA	21.8 x 11.1 x 9.2mm
