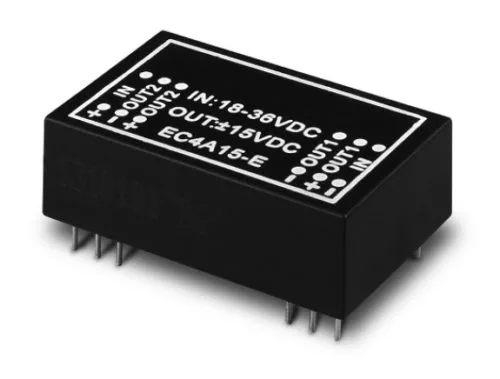

EC4A-E Series, 6 Watt Through Hole DC-DC Converter
24 Pin DIL Package
Up to 3000 VDC High Isolation
Regulated Single and Dual Output
Features
- 2"x 1" Input Range
- 6 Watt Isolated Output
- Up to 3000 VDC
- Continuous Short Circuit Protection
- Efficiency up to 87 %
- EMI Complies with EN55032 Class A
- Safety Meets IEC/EN/UL 62368-1
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size (24 Pin DIL) |
|---|---|---|---|---|
| EC4A07x-E | 9~18 Volts | 3.3 Volts | 1200mA | 31.8 x 20.3 x 10.2mm |
| EC4A01x-E | 9~18 Volts | 5 Volts | 1000mA | 31.8 x 20.3 x 10.2mm |
| EC4A02x-E | 9~18 Volts | 12 Volts | 500mA | 31.8 x 20.3 x 10.2mm |
| EC4A03x-E | 9~18 Volts | 15 Volts | 400mA | 31.8 x 20.3 x 10.2mm |
| EC4A17x-E | 18~36 Volts | 3.3 Volts | 1200mA | 31.8 x 20.3 x 10.2mm |
| EC4A11x-E | 18~36 Volts | 5 Volts | 1000mA | 31.8 x 20.3 x 10.2mm |
| EC4A12x-E | 18~36 Volts | 12 Volts | 500mA | 31.8 x 20.3 x 10.2mm |
| EC4A13x-E | 18~36 Volts | 15 Volts | 400mA | 31.8 x 20.3 x 10.2mm |
| EC4A27x-E | 36~72 Volts | 3.3 Volts | 1200mA | 31.8 x 20.3 x 10.2mm |
| EC4A21x-E | 36~72 Volts | 5 Volts | 1000mA | 31.8 x 20.3 x 10.2mm |
| EC4A22x-E | 36~72 Volts | 12 Volts | 500mA | 31.8 x 20.3 x 10.2mm |
| EC4A23x-E | 36~72 Volts | 15 Volts | 400mA | 31.8 x 20.3 x 10.2mm |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size (24 Pin DIL) |
|---|---|---|---|---|
| EC4A06x-E | 9~18 Volts | +5 Volts / +500mA | -5 Volts / -500mA | 31.8 x 20.3 x 10.2mm |
| EC4A04x-E | 9~18 Volts | +12 Volts / +250mA | -12 Volts / -250mA | 31.8 x 20.3 x 10.2mm |
| EC4A05x-E | 9~18 Volts | +15 Volts / +100mA | -15 Volts / -100mA | 31.8 x 20.3 x 10.2mm |
| EC4A16x-E | 18~36 Volts | +5 Volts / +500mA | -5 Volts / -500mA | 31.8 x 20.3 x 10.2mm |
| EC4A14x-E | 18~36 Volts | +12 Volts / +250mA | -12 Volts / -250mA | 31.8 x 20.3 x 10.2mm |
| EC4A15x-E | 18~36 Volts | +15 Volts / +200mA | -15 Volts / -200mA | 31.8 x 20.3 x 10.2mm |
| EC4A26x-E | 36~72 Volts | +5 Volts / +500mA | -5 Volts / -500mA | 31.8 x 20.3 x 10.2mm |
| EC4A24x-E | 36~72 Volts | +12 Volts / +250mA | -12 Volts / -250mA | 31.8 x 20.3 x 10.2mm |
| EC4A25x-E | 36~72 Volts | +15 Volts / +200mA | -15 Volts / -200mA | 31.8 x 20.3 x 10.2mm |
