EC4BW-10WATT-DCDC-CONVERTER EC4BW-10WATT-DCDC-CONVERTER

EC4BW-10 Watt

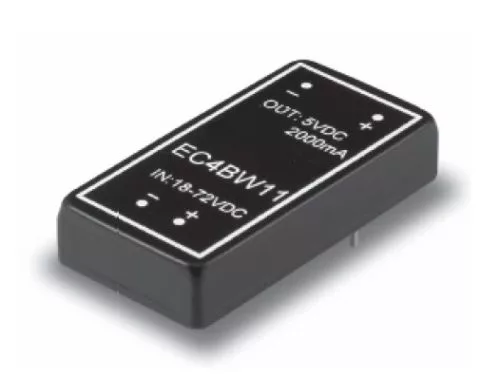

EC4BW Series, 10 Watt Through Hole DC-DC Converter

2”x 1” Six-Sided Shield Metal Case

500 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 10W Isolated Output
  • 2”x1” Six-Sided Shield Metal Case
  • 4:1 Input Range
  • Pi Input Filter
  • Continuous Short Circuit Protection
  • Efficiency up to 82 %

Models and Ratings

Model Input VDC Output VDC Output Current Size
EC4BW07 9~36 Volts 3.3 Volts 2000mA 50.8 x 25.4 x 10.2mm
EC4BW01 9~36 Volts 5 Volts 2000mA 50.8 x 25.4 x 10.2mm
EC4BW02 9~36 Volts 12 Volts 830mA 50.8 x 25.4 x 10.2mm
EC4BW03 9~36 Volts 15 Volts 666mA 50.8 x 25.4 x 10.2mm
EC4BW17 18~72 Volts 3.3 Volts 1000mA 50.8 x 25.4 x 10.2mm
EC4BW11 18~72 Volts 5 Volts 1000mA 50.8 x 25.4 x 10.2mm
EC4BW12 18~72 Volts 12 Volts 830mA 50.8 x 25.4 x 10.2mm
EC4BW13 18~72 Volts 15 Volts 666mA 50.8 x 25.4 x 10.2mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size
EC4BW06 9~36 Volts +5 Volts / +1000mA -5 Volts / -1000mA 50.8 x 25.4 x 10.2mm
EC4BW04 9~36 Volts +12 Volts / +415mA -12 Volts / -415mA 50.8 x 25.4 x 10.2mm
EC4BW05 9~36 Volts +15 Volts / +333mA -15 Volts / -333mA 50.8 x 25.4 x 10.2mm
EC4BW16 18~72 Volts +5 Volts / +1000mA -5 Volts / -1000mA 50.8 x 25.4 x 10.2mm
EC4BW14 18~72 Volts +12 Volts / +415mA -12 Volts / -415mA 50.8 x 25.4 x 10.2mm
EC4BW15 18~72 Volts +15 Volts / +333mA -15 Volts / -333mA 50.8 x 25.4 x 10.2mm
