EC6AW-110

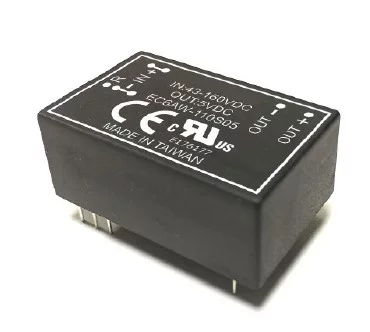

EC6AW-110 Series, 10 Watt DC-DC Converter

4:1 Inputs (43~160 VDC)

Regulated Single and Dual Output

Rail Approved

Request a quote Download Datasheet

Model	Input VDC	Output VDC	Output Current	Size
EC6AW-110S33	43~160 Volts	5 Volts	2500mA	31.8 x 20.3 x 12.7mm
EC6AW-110S05	43~160 Volts	5 Volts	2000mA	31.8 x 20.3 x 12.7mm
EC6AW-110S12	43~160 Volts	12 Volts	835mA	31.8 x 20.3 x 12.7mm
EC6AW-110S15	43~160 Volts	15 Volts	666mA	31.8 x 20.3 x 12.7mm

Model	Input VDC	Output 1	Output 2	Size
EC76AW-110D05	43~160 Volts	+5 Volts / +1000mA	-5 Volts / -1000mA	31.8 x 20.3 x 12.7mm
EC76AW-110D12	43~160 Volts	+12 Volts / +416mA	-12 Volts / -416mA	31.8 x 20.3 x 12.7mm
EC6AW-110D15	43~160 Volts	+15 Volts / +333mA	-15 Volts / -333mA	31.8 x 20.3 x 12.7mm
