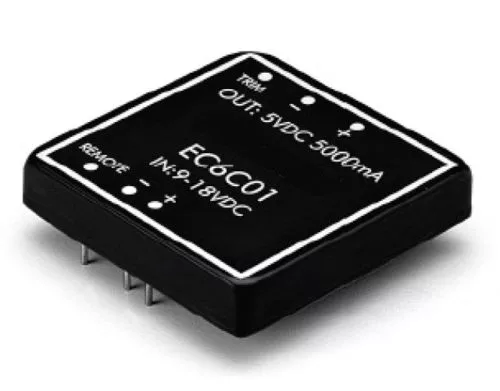

EC6C-30W Series

EC6C-30W Series, 30 Watt DC-DC Converter

2″x 2″ Package

500 VDC Isolation

2:1 Inputs

Single, Dual & Triple Outputs

Request a quote Download Datasheet

Features

  • 2:1 Input Range
  • 2” X 2” Six-Sided Shield Metal Case
  • Remote On/Off Control
  • Efficiency up to 88 %
  • 500 VDC Isolation
  • Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model Input VDC Output VDC Output Current Size
EC6C09 9~18 Volts 3.3 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C01 9~18 Volts 5 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C02 9~18 Volts 12 Volts 2500mA 50.8 x 50.8 x 10.2m
EC6C03 9~18 Volts 15 Volts 2000mA 50.8 x 50.8 x 10.2m
EC6C19 18~36 Volts 3.3 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C11 18~36 Volts 5 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C12 18~36 Volts 12 Volts 2500mA 50.8 x 50.8 x 10.2m
EC6C13 18~36 Volts 15 Volts 2000mA 50.8 x 50.8 x 10.2m
EC6C29 36~72 Volts 3.3 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C21 36~72 Volts 5 Volts 5000mA 50.8 x 50.8 x 10.2m
EC6C22 36~72 Volts 12 Volts 2500mA 50.8 x 50.8 x 10.2m
EC6C23 36~72 Volts 15 Volts 2000mA 50.8 x 50.8 x 10.2m

Dual Output Models

Model Input VDC Output 1 Output 2 Size
EC6C04 9~18 Volts +5 Volts / +2500mA -5 Volts / -2500mA 50.8 x 50.8 x 10.2m
EC6C05 9~18 Volts +12 Volts / +1250mA -12 Volts / -1250mA 50.8 x 50.8 x 10.2m
EC6C06 9~18 Volts +15 Volts / +1000mA -15 Volts / -1000mA 50.8 x 50.8 x 10.2m
EC6C14 18~36 Volts +5 Volts / +2500mA -5 Volts / -2500mA 50.8 x 50.8 x 10.2m
EC6C15 18~36 Volts +12 Volts / +1250mA -12 Volts / -1250mA 50.8 x 50.8 x 10.2m
EC6C16 18~36 Volts +15 Volts / +1000mA -15 Volts / -1000mA 50.8 x 50.8 x 10.2m
EC6C24 36~72 Volts +5 Volts / +2500mA -5 Volts / -2500mA 50.8 x 50.8 x 10.2m
EC6C25 36~72 Volts +12 Volts / +1250mA -12 Volts / -1250mA 50.8 x 50.8 x 10.2m
EC6C26 36~72 Volts +15 Volts / +1000mA -15 Volts / -1000mA 50.8 x 50.8 x 10.2m

Triple Output Models

Model Input VDC Output 1 Output 2 Output 3 Size
EC5C07 9~18 Volts +5 Volts / 3500mA +12 Volts / +310mA -12 Volts / -310mA 50.8 x 50.8 x 10.2m
EC5C08 9~18 Volts +5 Volts / 3500mA +15 Volts / +250mA -15 Volts / -250mA 50.8 x 50.8 x 10.2m
EC5C17 18~36 Volts +5 Volts / 3500mA +12 Volts / +310mA -12 Volts / -310mA 50.8 x 50.8 x 10.2m
EC5C18 18~36 Volts +5 Volts / 3500mA +15 Volts / +250mA -15 Volts / -250mA 50.8 x 50.8 x 10.2m
EC5C27 36~72 Volts +5 Volts / 3500mA +12 Volts / +310mA -12 Volts / -310mA 50.8 x 50.8 x 10.2m
EC5C28 36~72 Volts +5 Volts / 3500mA +15 Volts / +250mA -15 Volts / -250mA 50.8 x 50.8 x 10.2m

Related Products

ec5bu-dcdc-converter ec5bu-dcdc-converter

EC5BU-15 Watt

Models & Information
EC3SBW-DCDC-CONVERTER EC3SBW-DCDC-CONVERTER

EC3SBW-15 Watt

Models & Information
EC5C-dcdc-converter EC5C-dcdc-converter

EC5C-15W Series

Models & Information
ec9bw ec9bw

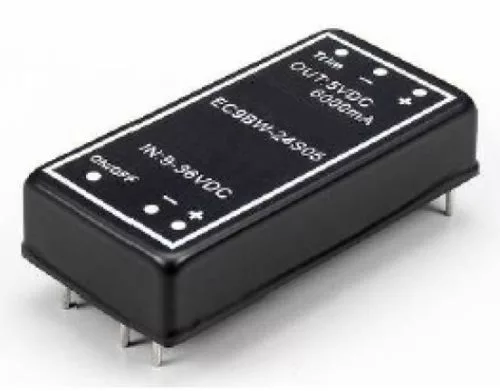

EC9BW-30 Watt

Models & Information
ec7bw-dcdc-converter ec7bw-dcdc-converter

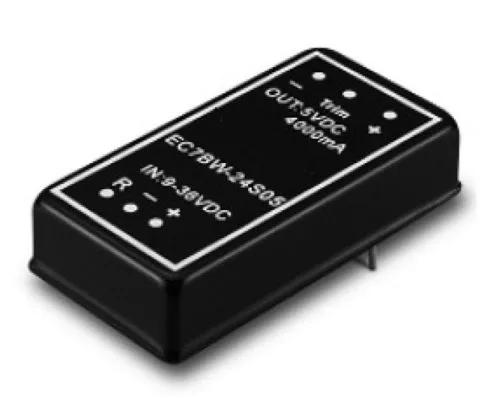

EC7BW-20 Watt

Models & Information
eclb40w-dcdc-converter eclb40w-dcdc-converter

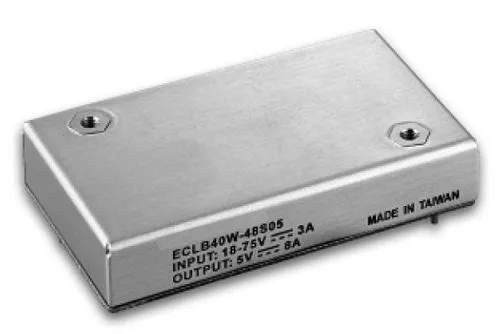

ECLB40W-40 Watt
