ec7a-dcdc-converter ec7a-dcdc-converter

EC7A-10 Watt

EC7A Series, 10 Watt Through Hole DC-DC Converter

24 Pin DIL  Package

1500 VDC Isolation

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 2"x 1" Input Range
  • 10 Watt Isolated Output
  • 1500 VDC Isolation
  • Continuous Short Circuit Protection
  • Efficiency up to 89 %
  • Without Tantalum Capacitor Inside
  • Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model Input VDC Output VDC Output Current Size (24 Pin DIL)
EC7A-12S25 9~18 Volts 2.5 Volts 3000mA
EC7A-12S33 9~18 Volts 3.3 Volts 3000mA 31.8 x 20.3 x 10.2mm
EC7A-12S05 9~18 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
EC7A-12S12 9~18 Volts 12 Volts 835mA 31.8 x 20.3 x 10.2mm
EC7A-12S15 9~18 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm
EC7A-24S25 18~36 Volts 2.5 Volts 3000mA
EC7A-24S33 18~36 Volts 3.3 Volts 3000mA 31.8 x 20.3 x 10.2mm
EC7A-24S05 18~36 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
EC7A-24S12 18~36 Volts 12 Volts 835mA 31.8 x 20.3 x 10.2mm
EC7A-24S15 18~36 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm
EC7A-48S25 36~72 Volts 2.5 Volts 3000mA
EC7A-48S33 36~72 Volts 3.3 Volts 3000mA 31.8 x 20.3 x 10.2mm
EC7A-48S05 36~72 Volts 5 Volts 2000mA 31.8 x 20.3 x 10.2mm
EC7A-48S12 36~72 Volts 12 Volts 835mA 31.8 x 20.3 x 10.2mm
EC7A-48S15 36~72 Volts 15 Volts 666mA 31.8 x 20.3 x 10.2mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (24 Pin DIL)
EC7A-12D12 9~18 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
EC7A-12D15 9~18 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm
EC7A-24D12 18~36 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
EC7A-24D12 18~36 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm
EC7A-48D12 36~72 Volts +12 Volts / +416mA -12 Volts / -416mA 31.8 x 20.3 x 10.2mm
EC7A-48D15 36~72 Volts +15 Volts / +333mA -15 Volts / -333mA 31.8 x 20.3 x 10.2mm

Related Products

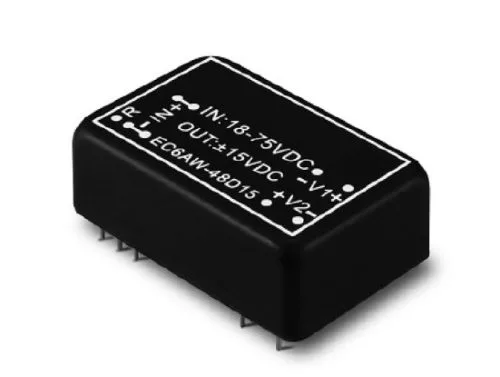

ec6aw dcdc converter ec6aw dcdc converter
