EC7BW-20 Watt

Home | Products | Railway Solutions | EC7BW-20 Watt

EC7BW Series, 20 Watt DC-DC Converter

2″x 1″ Package

1500 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

20W Isolated Output
2’’x 1’’ Six-Sided Shield Metal Case
Efficiency to 90%
4:1 Input Range
Regulated Outputs
PI Input Filter
Remote On/Off (Option)
Continuous Short Circuit Protection
Fixed Switching Frequency
Safety Meets IEC/EN/UL 62368-1
Fire & Smoke Meets EN45545-2

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size (2"x 1")
EC7BW-24S33	9~36 Volts	3.3 Volts	5500mA	50.8 x 25.4 x 10.2mm
EC7BW-24S05	9~36 Volts	5 Volts	4000mA	50.8 x 25.4 x 10.2mm
EC7BW-24S12	9~36 Volts	12 Volts	1670mA	50.8 x 25.4 x 10.2mm
EC7BW-24S15	9~36 Volts	15 Volts	1330mA	50.8 x 25.4 x 10.2mm

EC7BW-48S33	18~75 Volts	3.3 Volts	5500mA	50.8 x 25.4 x 10.2mm
EC7BW-48S05	18~75 Volts	5 Volts	4000mA	50.8 x 25.4 x 10.2mm
EC7BW-48S12	18~75 Volts	12 Volts	1670mA	50.8 x 25.4 x 10.2mm
EC7BW-48S15	18~75 Volts	15 Volts	1330mA	50.8 x 25.4 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size (2"x 1")
EC7BW-24D05	9~36 Volts	+5 Volts / +2000mA	-5 Volts / -2000mA	50.8 x 25.4 x 10.2mm
EC7BW-24D12	9~36 Volts	+12 Volts / +835mA	-12 Volts / -835mA	50.8 x 25.4 x 10.2mm
EC7BW-24D15	9~36 Volts	+15 Volts / +666mA	-15 Volts / -666mA	50.8 x 25.4 x 10.2mm

EC7BW-48D05	18~75 Volts	+5 Volts / +2000mA	-5 Volts / -2000mA	50.8 x 25.4 x 10.2mm
EC7BW-48D12	18~75 Volts	+12 Volts / +835mA	-12 Volts / -835mA	50.8 x 25.4 x 10.2mm
EC7BW-48D15	18~75 Volts	+15 Volts / +666mA	-15 Volts / -666mA	50.8 x 25.4 x 10.2mm

Related Products

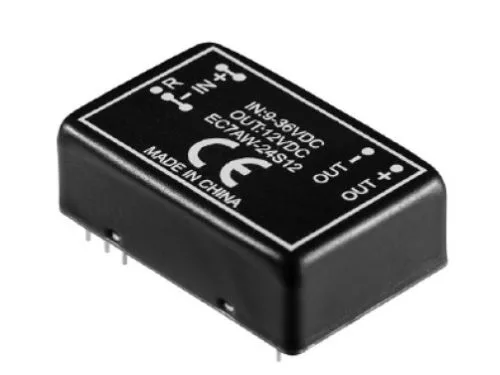

ec7aw-dcdc-converter

EC7AW-10 Watt

Models & Information

EC3SBW-DCDC-CONVERTER

EC3SBW-15 Watt

Models & Information

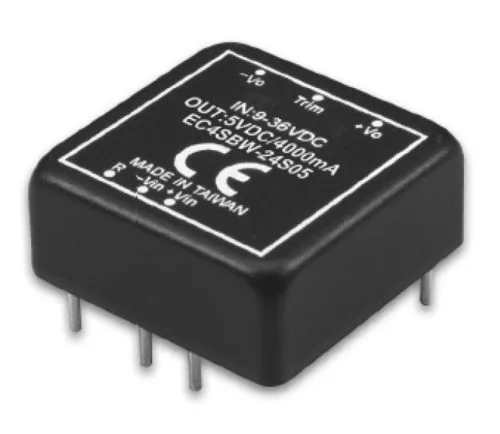

ec4sbw-dcdc-converter
