EC7BW18 ECRT/EDRT

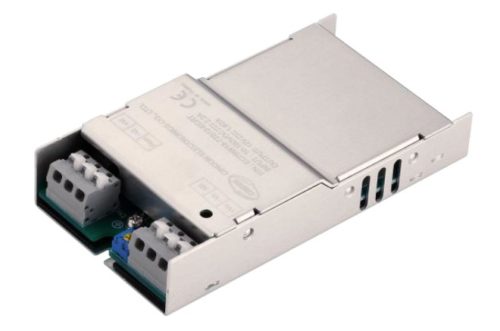

EC7BW18 ECRT/EDRT Series, 20 Watt DC-DC Converter

Chassis Mounting

3000 VDC Isolation

16:1 Inputs

Regulated Single and Dual Output

Rail Approved

Request a quote Download Datasheet

Model	Input VDC	Output VDC	Output Current	Size
EC7BW18-72S05-ZZZZW	10~160 Volts	5 Volts	4000mA	113 x 59.2 x 17.4mm
EC7BW18-72S12-ZZZZW	10~160 Volts	12 Volts	1670mA	113 x 59.2 x 17.4mm
EC7BW18-72S15-ZZZZW	10~160 Volts	15 Volts	1330mA	113 x 59.2 x 17.4mm

Model	Input VDC	Output 1	Output 2	Size
EC7BW18-72D12-ZZZZW	10~160 Volts	+12 Volts / +835mA	-12 Volts / -835mA	113 x 59.2 x 17.4mm
EC7BW18-72D15-ZZZZW	10~160 Volts	+15 Volts / +667mA	-15 Volts / -667mA	113 x 59.2 x 17.4mm
ECB7W18-72D24-ZZZZW	10~160 Volts	+24 Volts / +417mA	-24 Volts / -417mA	113 x 59.2 x 17.4mm
