ECLB40W-110S

Home | Products | Railway Solutions | ECLB40W-110S

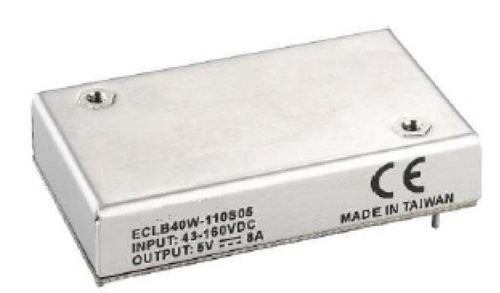

ECLB40W-110 Series DC-DC Converter

2.05″x 1.2″ Package

Rail Approved

Request a quote Download Datasheet

40W Isolated Output
2.05’’x1.2x0.4’’ Six-Sided Shield Metal Case
Efficiency to 91%
4:1 Input Range
Low No Load Power Consumption
Regulated Outputs
Input Under Voltage Protection
Remote On/Off
Continuous Short Circuit Protection
Without Tantalum Capacitors Inside
Fixed Switching Frequency
UL60950-1 2nd (Basic Insulation) Approval
Meets EN50155 with External Circuits
Fire & Smoke Meets EN45545-2
3000m Operating Altitude
Safety Meets IEC/EN/UL 62368-1

Models and Ratings

Model	Input VDC	Output VDC	Output Current	Size
ECLB40W-110S33	43~160 Volts	3.3 Volts	10,000mA	52 x 30.5 x 10.2mm
ECLB40W-110S05	43~160 Volts	5 Volts	8000mA	52 x 30.5 x 10.2mm
ECLB40W-110S12	43~160 Volts	12 Volts	3333mA	52 x 30.5 x 10.2mm
ECLB40W-110S15	43~160 Volts	15 Volts	2666mA	52 x 30.5 x 10.2mm

Dual Output Models

Model	Input VDC	Output 1	Output 2	Size
ECLB40W-110D12	43~160 Volts	+12 Volts / +1667mA	-12 Volts / -1667mA	52 x 30.5 x 10.2mm
ECLB40W-110D15	43~160 Volts	+15 Volts / +1333mA	-15 Volts / -1333mA	52 x 30.5 x 10.2mm
ECLB40W-110D24	43~160 Volts	+24 Volts / +833mA	-24 Volts / -833mA	52 x 30.5 x 10.2mm
