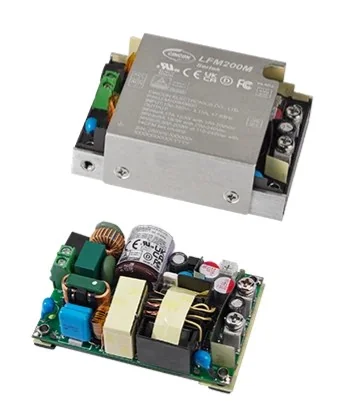

LFM200M Series

LFM200M Series, 200 Watt, Medically Approved Single Output Power Supply – Ultra Compact Size

Conduction Cooled

Request a quote Download Datasheet

Model	Input VAC	Output VDC	Output Current	Size
LFM200M120	85~264 VAC	12 Volts	16.67 Amps	78.6 x 57.9 x 25.4mm
LFM200M150	85~264 VAC	15 Volts	13.33 Amps	78.6 x 57.9 x 25.4mm
LFM200M240	85~264 VAC	24 Volts	8.33 Amps	78.6 x 57.9 x 25.4mm
LFM200M280	85~264 VAC	28 Volts	7.14 Amps	78.6 x 57.9 x 25.4mm
LFM200M300	85~264 VAC	30 Volts	6.66 Amps	78.6 x 57.9 x 25.4mm
LFM200M360	85~264 VAC	36 Volts	5.55 Amps	78.6 x 57.9 x 25.4mm
LFM200M480	85~264 VAC	48 Volts	4.16 Amps	78.6 x 57.9 x 25.4mm
LFM200M540	85~264 VAC	54 Volts	3.7 Amps	78.6 x 57.9 x 25.4mm

Add Suffix :

B：With Baseplate

C：With Cover
