LFM550M Series

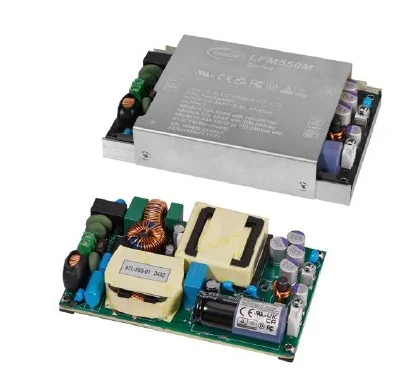

LFM550M Series, 550 Watt, Single Output Power Supply – Ultra Compact Size

Medically Approved

Conduction Cooled

Request a quote Download Datasheet

Features

  • Universal Input Range 85 ~ 264 VAC
  • High Efficiency up to 94%
  • 25.4mm Low Profile Package
  • Approval Safety IEC/EN/UL 60601-1 2 MOPP
  • Approval Safety IEC/EN/UL 62368-1
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • High Power Density 36.66W/Inches3
  • Active PFC Function

Models and Ratings

Model Input VAC Output VDC Output Current Size
LFM550M120 80~264 VAC 12 Volts 45.83 Amps 129.4 x 83.5 x 25.4mm
LFM550M150 80~264 VAC 15 Volts 45.83 Amps 129.4 x 83.5 x 25.4mm
LFM550M240 80~264 VAC 24 Volts 22.91 Amps 129.4 x 83.5 x 25.4mm
LFM550M280 80~264 VAC 28 Volts 19.64 Amps 129.4 x 83.5 x 25.4mm
LFM550M300 80~264 VAC 30 Volts 18.33 Amps 129.4 x 83.5 x 25.4mm
LFM550M360 80~264 VAC 36 Volts 15.27 Amps 129.4 x 83.5 x 25.4mm
LFM550M480 80~264 VAC 48 Volts 11.45 Amps 129.4 x 83.5 x 25.4mm
LFM550M540 80~264 VAC 54 Volts 10.18 Amps 129.4 x 83.5 x 25.4mm

Notes

Add Suffix :
B：With Baseplate
C：With Cover
