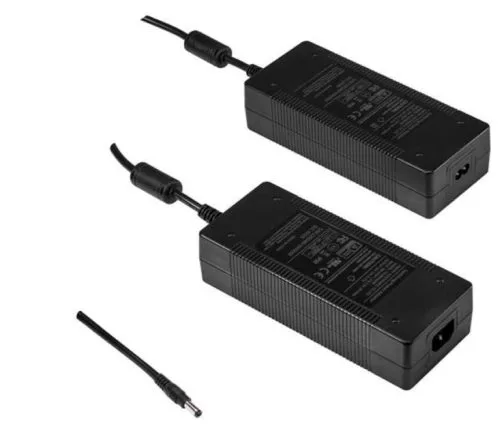

tr220m-medical-desktop

TR220M Series

Home | Products | Medically Approved | TR220M Series

TR220M Series, Single Output, Medically Approved, Desktop Power Supplies

Request a quote Download Datasheet

Wide Operating Voltage 80 to 264 VAC,47 to 63 Hz
High Efficiency up to 94%
Class I (TR220MA), Class II (TR220MB)
No Load Input Power Consumption < 150mW
Approval IEC/EN/UL 60601-1 2 MOPP
Approval IEC/EN 60601-1-11 (TR220MB)
Approval EN55011 and CISPR/FCC Class B
Operating Altitude 5000m
Continuous Short Circuit Protection
Meets CoC Tier 2 and DOE Level VI

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
TR220M-x-120	90~264	12 Volts	16.67 Amps	180 x 75 x 44.5mm
TR220M-x-240	90~264	24 Volts	9.17 Amps	180 x 75 x 44.5mm
TR220M-x-360	90~264	36 Volts	6.11 Amps	180 x 75 x 44.5mm
TR220M-x-480	90~264	48 Volts	4.58 Amps	180 x 75 x 44.5mm
TR220M-x-560	90~264	56 Volts	3.93 Amps	180 x 75 x 44.5mm

Notes

*Suffix 'x' : A=3 Pole C14 IEC Inlet. or B = 2 Pole C8 IEC Inlet
