TR70M Series

Home | Products | Medically Approved | TR70M Series

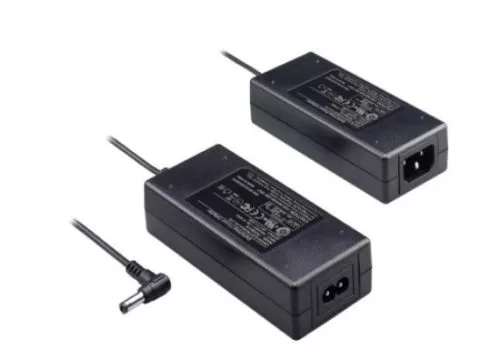

TR70M Series, Single Output, Medically Approved, Desktop Power Supplies

Request a quote Download Datasheet

Wide Operating Voltage 80 to 264 VAC,47 to 63 Hz
High Efficiency up to 91%
Class I (TR70MA), Class II (TR70MB)
No Load Input Power Consumption < 150mW
Approval IEC/EN/UL 60601-1 2 MOPP
Approval IEC/EN 60601-1-11 (TR70MB)
Home Healthcare Applications (TR70MB)
Approval IP21 (TR70MB)
Approval EN55011 and CISPR/FCC Class B
Meets IEC/EN 60335-1
Operating Altitude 5000m
Continuous Short Circuit Protection
Over Voltage Protection
Meets CoC Tier 2 & DoE Level VI

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
TR70Mx120	90~264	12 Volts	5.8 Amps	120 x 52 x 31mm
TR70Mx150	90~264	15 Volts	4.65 Amps	120 x 52 x 31mm
TR70Mx180	90~264	18 Volts	3.9 Amps	120 x 52 x 31mm
TR70Mx240	90~264	24 Volts	3 Amps	120 x 52 x 31mm
TR70Mx360	90~264	36 Volts	1.9 Amps	120 x 52 x 31mm
TR70Mx480	90~264	48 Volts	1.5 Amps	120 x 52 x 31mm

Notes

x = 'A' Class I C14 AC Inlet or 'B' Class II C8 AC Inlet
