TRH50A Series

Home | Products | Desktop | TRH50A Series

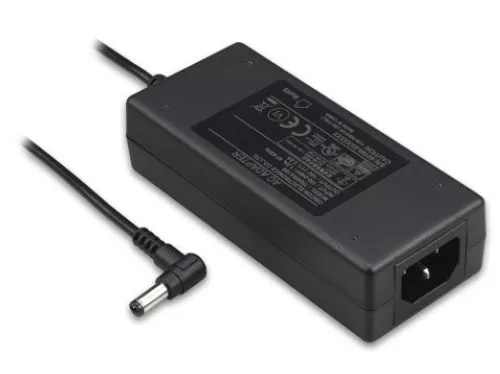

TRH50A Series, Single Output Desktop Power Supplies

Request a quote Download Datasheet

Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz
IEC-320-C14 Input Inlet
No Load Input Power Consumption < 150mW
Approval IEC/EN/UL 62368-1
Meets EN55032 Class B and CISPR/FCC Class B
Operating Altitude 5000m
Continuous Short Circuit Protection
Meets CoC Tier 2 & DoE Level VI

Models and Ratings

Model	Input VAC	Output VDC	Output Current	Size
TRH50A120	90~264	12 Volts	4.2 Amps	120 x 52 x 31mm
TRH50A150	90~264	15 Volts	3.36 Amps	120 x 52 x 31mm
TRH50A180	90~264	18 Volts	2.8 Amps	120 x 52 x 31mm
TRH50A190	90~264	19 Volts	2.65 Amps	120 x 52 x 31mm
TRH50A240	90~264	24 Volts	2.1 Amps	120 x 52 x 31mm
TRH50A280	90~264	28 Volts	1.8 Amps	120 x 52 x 31mm
TRH50A360	90~264	36 Volts	1.4 Amps	120 x 52 x 31mm
TRH50A480	90~264	48 Volts	1.05 Amps	120 x 52 x 31mm

Related Products

tre36-power-supply

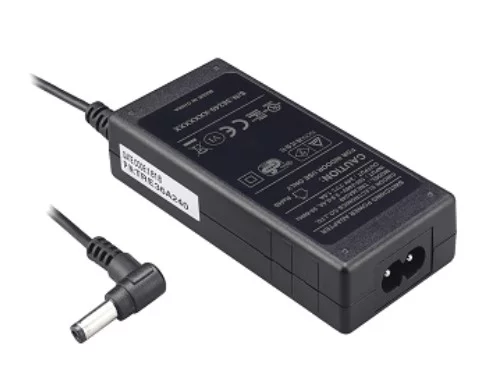

TRE36 Series
