CFM400S Series

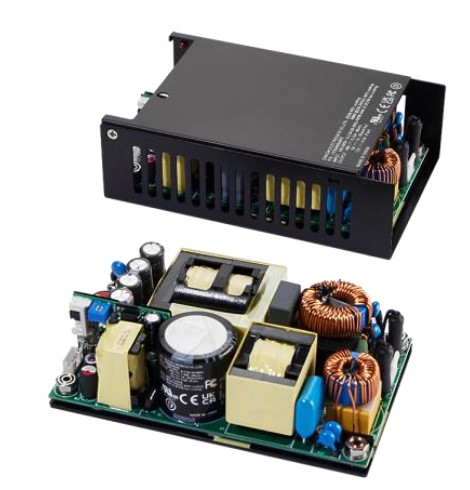

CFM400S Series, 400 Watt, Conduction Cooled Power Supply – Ultra Compact Size

Request a quote Download Datasheet

Features

  • Universal Input Range 80 ~ 264 VAC
  • High Efficiency up to 94%
  • 3”x 5” Compact Size
  • No Load Power Consumption<0.5W(PS-Off)
  • Approval IEC/EN/UL 62368-1
  • Approval EN 55032, 47 CFR FCC Part 15
  • Active PFC Meets EN 61000-3-2
  • Meets IEC/EN 60335-1
  • High Power Density up to 17.3W/Inch3
  • 370W Natural, 400W ConductionConvection
  • Over Temperature Protection
  • PS On/Off Remote Control
  • Power Good & Power Fail Signal
  • +5V Stand-by, 12V Fan Output
  • Low Inrush Current

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM400S120 80~264 VAC 12 Volts 33.33 Amps 127 x 76.2 x 39.1mm
CFM400S180 80~264 VAC 18 Volts 22.22 Amps 127 x 76.2 x 39.1mm
CFM400S240 80~264 VAC 24 Volts 16.67 Amps 127 x 76.2 x 39.1mm
CFM400S360 80~264 VAC 36 Volts 11.11 Amps 127 x 76.2 x 39.1mm
CFM400S480 80~264 VAC 48 Volts 8.33 Amps 127 x 76.2 x 39.1mm
CFM400S540 80~264 VAC 54 Volts 7.40 Amps 127 x 76.2 x 39.1mm
