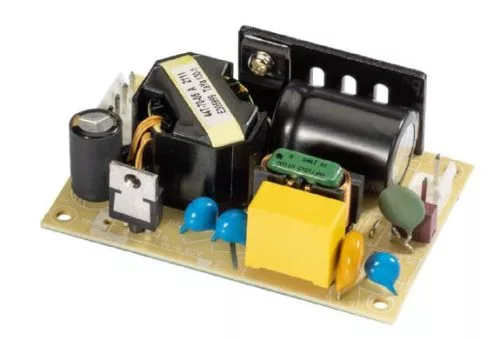

CFM50S Series

CFM50 Series, 50 Watt Chassis Mounting Single Output Power Supplies

Request a quote Download Datasheet

Features

  • Universal Input Range 90~264 VAC
  • High Efficiency up to 89%
  • 2”x 3” Open Frame Compact Size
  • No Load Input Power < 0.15W
  • Approval IEC/EN/UL 62368-1
  • Meets IEC/EN 60335-1
  • Approval EN 55032 Class B and CISPR/FCC Class B
  • Operating Altitude 5000m

Models and Ratings

Model Input VAC Output VDC Output Current Size
CFM50S050 90~264 5 Volts 8 Amps 76.2 x 50.8 x 27.1mm
CFM50S120 90~264 12 Volts 4.17 Amps 76.2 x 50.8 x 27.1mm
CFM50S150 90~264 15 Volts 3.33 Amps 76.2 x 50.8 x 27.1mm
CFM50S240 90~264 24 Volts 2.08 Amps 76.2 x 50.8 x 27.1mm
CFM50S360 90~264 36 Volts 1.39 Amps 76.2 x 50.8 x 27.1mm
CFM50S480 90~264 48 Volts 1.04 Amps 76.2 x 50.8 x 27.1mm
